Titanium and steel rank among the most utilized metals across various industries, each boasting unique properties. Both offer advantages and drawbacks, excelling in diverse applications.
In this article, we'll conduct an in-depth comparison of these metals, delineating their distinct properties, merits, demerits, and guidance on selecting the suitable metal for your project.
Titanium, an elemental earth metal and the fourth most abundant metal, finds application in high-performance industries despite its high cost and demanding processing requirements. Due to its challenging machinability in its pure elemental form, titanium is often alloyed with metals like iron and aluminum.
These alloys are indispensable in sectors such as aerospace, automotive engines, marine equipment, industrial machinery, and consumer goods. Offering high corrosion resistance, impact absorption, exceptional strength-to-weight ratio, among other qualities, they represent an excellent choice for superior performance, particularly when cost is not the primary consideration.
Steel, an iron-carbon alloy, can be combined with other metals to improve its mechanical properties. It is widely used in nearly every industry due to its strength, temperature resistance, high tensile strength, excellent machinability, and other exceptional physical properties.
Its affordability and ease of working with make it the preferred material for construction, automobiles, infrastructure, industrial machinery, and various other sectors.
Both titanium and steel are robust materials commonly used across various applications. However, in a direct comparison of steel vs titanium, what are the primary differences?
Titanium exists naturally and is available in both pure and alloy forms. The most prevalent titanium alloy, Ti 6-4, incorporates aluminum and vanadium. On the other hand, steel is a synthetic material comprising iron and carbon, with additional elements in varying proportions to tailor its properties for specific uses.
Steel and titanium differ in their crystalline structures, with titanium adopting a hexagonal close-packed (HCP) structure and steel a body-centered cubic (BCC) structure. This structural variance contributes significantly to titanium's lower density and higher strength-to-weight ratio.
Due to its low density and exceptional strength-to-weight ratio, titanium is favored for aerospace applications, often shaped using CNC machining processes.
While steel alloys are durable and enduring, they are heavier, making them suitable for situations where cost takes precedence over weight considerations.
Steel surpasses titanium in several aspects, including hardness. Titanium's low Brinell number contributes to its difficulty in processing. Titanium alloys are widely used in the industry as trace amounts of other metals help balance titanium's inherent material hardness.
Steel generally exhibits greater elasticity compared to titanium, even in its alloys. This increased elasticity makes steel easier to machine and fabricate custom parts, directly impacting processing costs.
The titanium vs steel debate does not yield a straightforward answer. Ultimately, the choice between the two depends on factors such as your project, conditions, and available budget.
Strength levels overlap significantly across the range of steel and titanium alloys, making it challenging to definitively declare one stronger than the other. Some grades of steel may be stronger than certain titanium grades, and vice versa.

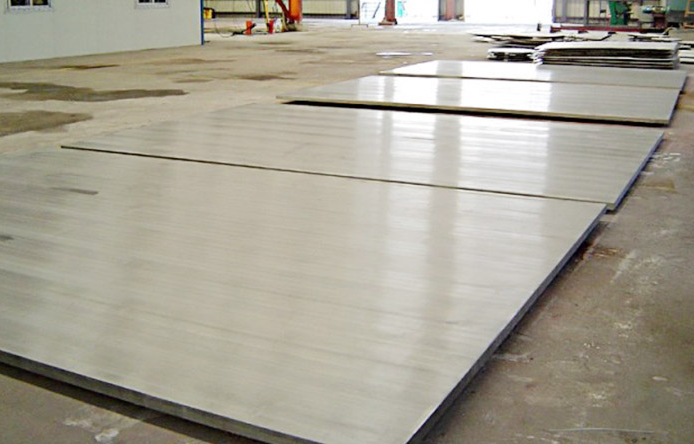

Titanium plate distinguishes itself with its corrosion resistance and ability to withstand extreme temperatures.
While steel alloys perform well in many situations, the presence of iron ensures eventual corrosion. In contrast, titanium outperforms steel and is preferred in harsh environments where prolonged exposure to moisture, chemicals, and other substances is anticipated.
Titanium finds widespread use in high-performance applications where strong thermal properties, high corrosion resistance, and a high strength-to-weight ratio are essential. Some common applications of titanium include:
- Surgical tools and equipment
- Prosthetics
- Aerospace components
- Tennis rackets
- Motorsports vehicle parts
Steel and its alloys are extensively utilized metals renowned for their versatility. From manufacturing metal components to fundamental construction and mechanical development, steel is employed across the globe and in nearly every industry. Some of its most prevalent applications include:
- Construction projects
- Various types of tools
- Electrical appliances
- Oil and gas pipelines
- Trains and automobiles
Steel is the more economical option compared to titanium because it is easier to produce with fewer processing requirements. However, the costs of steel vary significantly due to its various forms.
Titanium is typically 20-40 times more expensive than steel per unit weight.
Corrosion Resistance: Titanium's remarkable resistance to corrosion is its most appealing aspect. Upon exposure to air, titanium forms a thin, impermeable oxide layer on its surface, highly resistant to major corrosion causes, making it ideal for outdoor applications.
High Melting Point: With a melting point of approximately 1668°C, titanium is well-suited for high-temperature applications like turbine jet engines.
Non-Toxic Element: Unlike most metals, titanium is non-toxic to humans and animals, making it a preferred choice in the medical industry for applications ranging from bone strengthening to dental braces.
Ability to Withstand Extreme Temperatures: Titanium's qualities enable it to withstand high temperatures without shrinking or expanding, ensuring structural integrity.
High Strength: Despite its relatively low weight, titanium boasts a high strength-to-weight ratio, making it one of the strongest materials available.
High Cost: The cost of titanium is prohibitive for all but the most critical parts and projects due to its expense.
Deformation: Titanium's low elasticity modulus makes it prone to deformation, and its low stress-to-strain ratio complicates machining.
Casting Difficulty: Using titanium for casting presents challenges due to its high melting point and strength, hindering the casting process.
Complicated Processing: Titanium's strength, low elasticity, and hardness make it more challenging to work with compared to steel and other materials. Its high unit cost also makes certain manufacturing processes prohibitively expensive.
Difficult Extraction: Titanium extraction is complex and costly, with extraction components posing risks and causing environmental issues like soil erosion.
Low Cost: Steel is one of the most widely used and readily available metals globally. It is also affordable and easily accessible.
High Strength: Steel is renowned for its strength and durability. It can withstand extreme conditions like tornadoes and hurricanes while maintaining structural integrity.
Sustainability: Steel is recyclable with established processing methods, retaining its original strength and versatility even after multiple uses.
Modifiability: Steel offers designers greater freedom and customization opportunities compared to other materials. Its properties can be adjusted by incorporating various additional elements.
Workability: Steel exhibits excellent weldability, machinability, and is easily formed, making it highly versatile.
High Maintenance: When exposed to certain environments without proper maintenance or protection, steel can lose thickness and strength, up to 0.5mm per year.
Low Strength at High Temperatures: Steel must be adequately protected from high temperatures as its resistance to "creep" is poor. At elevated temperatures, its strength significantly decreases.
Aesthetics: Steel is not considered visually appealing for most products, often requiring surface treatment or cladding to enhance its aesthetic appeal.
Titanium is significantly stronger than stainless steel, making it excellent for high-stress applications such as airplane building. Stainless steel, on the other hand, is more corrosion-resistant than titanium and is therefore commonly used in food processing and medical equipment.
Titanium provides higher strength per unit mass, but steel remains the superior choice in terms of total strength. Titanium is perfect for circumstances requiring strength and lightness, which is why it’s commonly used in high performance automobile and aerospace designs. Steel is a logical choice when only strength is required, but titanium is suitable when both strength and weight are a factor.
Both titanium and steel possess unique properties that render them suitable for various applications. When deciding between these materials, it's essential to consider the following factors:
Strength-to-weight ratio: If weight reduction is crucial, titanium may be preferable due to its higher strength-to-weight ratio.
Corrosion resistance: In harsh environments, titanium's superior corrosion resistance shines.
Cost: Steel is generally more cost-effective than titanium, making it popular for large-scale projects and applications where cost is a significant consideration.
Fabrication and machining: Steel is typically easier to work with and machine compared to titanium, potentially leading to lower production costs.
Ultimately, the choice between titanium and steel hinges on the specific requirements of your project and the trade-offs you are willing to make regarding cost, weight, strength, and corrosion resistance. By carefully considering these factors, you can make an informed decision and select the best material for your application.
