Pipeline steel clad plate is a perfect combination of carbon steel and stainless steel which features the excellent cost effectiveness ratio when being applied in industries like gas, oil, heat exchange, fluid pipe, chemical fertilizer pipe and so on. It can help you save the engineering cost greatly yet with better performance.
Overview

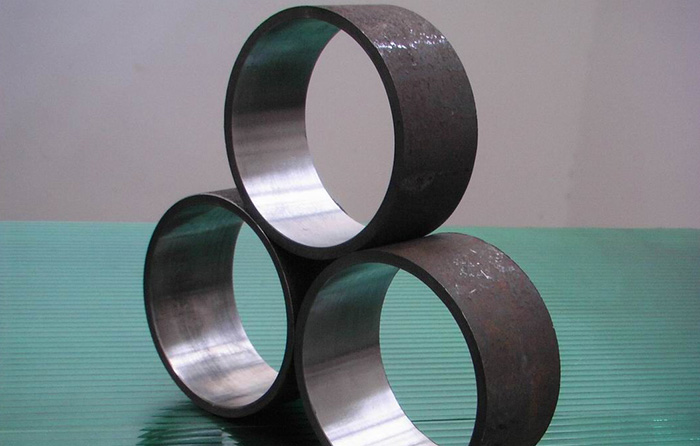

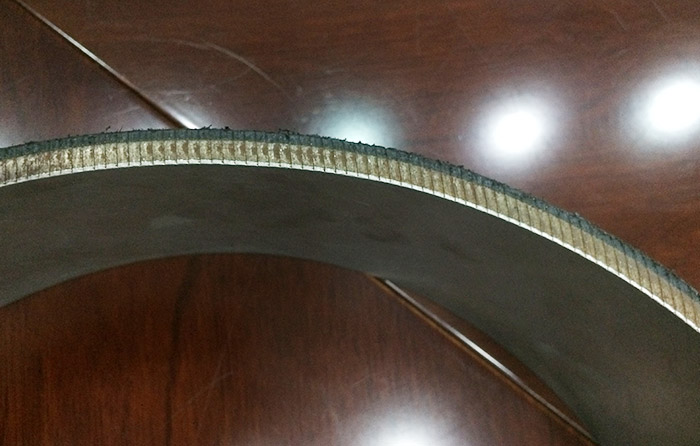

Pipeline Steel Clad Plate is innovative clad plates engineered by metallurgically bonding corrosion-resistant stainless steel with high-strength carbon steel. This dual-layer structure combines the cost-effectiveness of carbon steel with the superior corrosion resistance of stainless steel, making it an ideal solution for demanding applications in oil and gas transmission, heat exchange systems, chemical pipelines, and fluid transportation. Designed to meet GB standards, our clad steel plates ensure durability, safety, and long-term performance in harsh industrial environments.
Features
The thickness of the expensive corrosion resistant metal is made as thin as possible with the required strength being provided by the backing steel. The cladding ratio and the size of the clad plates can be produced to meet customer's requirements. In other words, flexibility of materials and made-to-order sizes of the cladding metal and backing steel makes it possible to reduce the material cost.
| Feature | Advantage |
|---|---|
| Dual-Layer Design | Combines corrosion resistance (stainless steel) with structural strength (carbon steel). |
| Custom Cladding Ratio | Optimizes material costs by minimizing expensive stainless steel thickness while meeting strength requirements. |
| Spiral Welded Line | Ensures uniform stress distribution and enhanced durability under high-pressure conditions. |
| Flexible Sizing | Tailored dimensions (max length: 12,000mm; OD: 219–3,220mm) to fit project needs. |

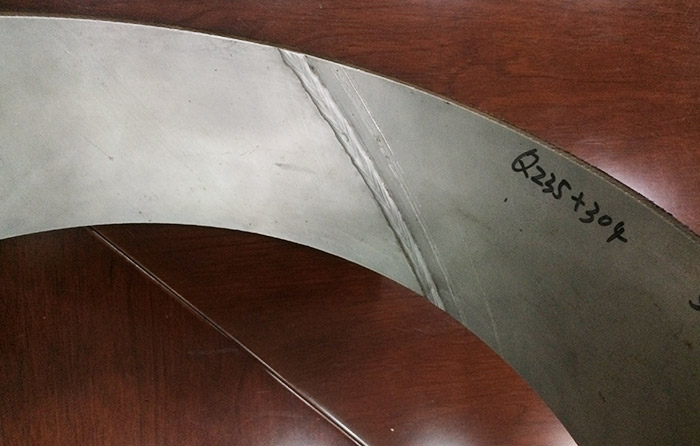

| Wide Material Options | Stainless steel (304, 316L, 321, etc.) + Carbon steel (Q235, Q345, 20R, etc.). |
| Cost-Effective | Reduces total project costs by up to 40% compared to full stainless steel solutions. |
| High Compatibility | Meets GB standards and can be customized to API, ASTM, or EN specifications. |
Specifications
| Item Name | Pipeline Steel Clad Plate |
| Type | Welded |
| Welding line type | Spiral welded |
| Thickness | 3-7mm |
| Outer diameter | 219-3220mm |
| Length | 12000mm (max) |
| Standard | GB |
| Materials | Stainless steel+Carbon steel |
| Stainless steels | 304,321,316(L),310S,etc |
| Carbon steels | Q235,Q345,20R,16MnR,etc |
| Pressure | 4Mpa (min) |
| Application | gas/oil/heat exchange/ fluid pipe/ chemical fertilizer pipe and so on |
| Package | Standard export sea-worthy package |
| Delivery Time | Usually 15-25 days depends on the quantity |
| Payment terms | TT, L/C, DP or Negotiable |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) |
| Note | We are so able to produce other standard as per the clients' requirements. Just let us know. |
DNV450SC+N08825 Supply Specification: (3+17.48)*2655*12400mm
DNV450SC+N08825 clad plate used for manufacturing composite pipes, with good mechanical properties of the composite pipes.
| Plate Number | Location | Transverse Tensile | Longitudinal Tensile | ||||||
| Rt0.5/MPa | Rm/MPa | A/% | Rt0.5/Rm | Rt0.5/MPa | Rm/MPa | A/% | Rt0.5/Rm | ||
| 23D00025010101 | H | 510 | 585 | 41 | 0.87 | 515 | 580 | 46 | 0.89 |
| T | 511 | 585 | 43.5 | 0.87 | 517 | 593 | 42.5 | 0.87 | |
| Plate Number | Location | Longitudinal Impact Kv2/J, -30℃ | DWTT, -20℃, % | |||||
| 23D00025010101 | 1# | 2# | 3# | Ave. | 1# | 2# | Ave. | |
| H | 337 | 312 | 327 | 325 | 100 | 100 | 100 | |
| T | 360 | 362 | 367 | 363 | 100 | 100 | 100 | |
| Plate No. | Shear Strength/MPa | |
| 1 | 2 | |
| 23D00025010101 | 410 | 435 |
| 23D00025020101 | 425 | 415 |
| Requirement | ≥250 | |
The bent samples exhibit satisfactory condition after undergoing a 180°bending test.
Intergranular Corrosion Test according to G28 A (120 hours)
| Plate No. | Sample Number | Surface Area of Specimen | Weight Loss (g) | Corrosion Rate (mm/y) | Average Corrosion Rate |
| (cm2) | (mm/y) | ||||
| 23D00025010101 | 1月1日 | 15.3522 | 0.0281 | 0.164 | 0.163 |
| 1月2日 | 15.7057 | 0.0289 | 0.165 | ||
| 1月3日 | 15.8767 | 0.0282 | 0.159 | ||
| Requirement ≤0.90 | |||||
Pitting Corrosion Test according to G48 A (72 hours at 22°C)
| Plate No. | Test Temperature (℃) | Sample Number | Surface Area of Specimen | Weight Loss(g) | Corrosion Rate (g/m2/24h) | Average Corrosion Rate (g/m2/24h) |
| (cm2) | ||||||
| 23D00025010101 | 22 | 1月1日 | 24.4086 | 0.0007 | 0.0956 | 0.09 |
| 1月2日 | 24.5891 | 0.0005 | 0.0678 | |||
| 1月3日 | 25.3478 | 0.0008 | 0.1052 | |||
| Requirement | ≤4 g/m2/24h | |||||
No etch pits were found on the surface of the samples
Uses

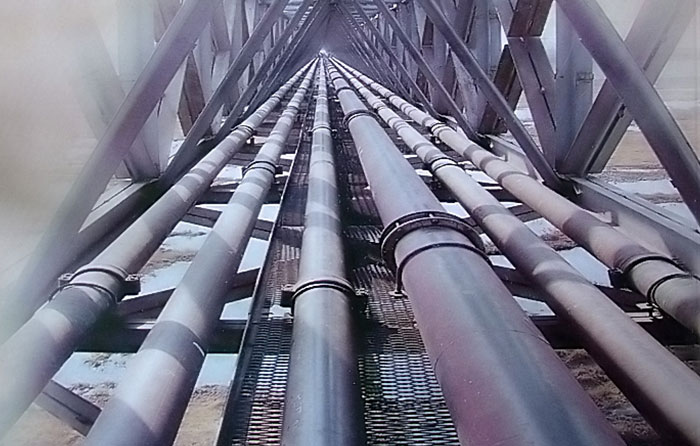

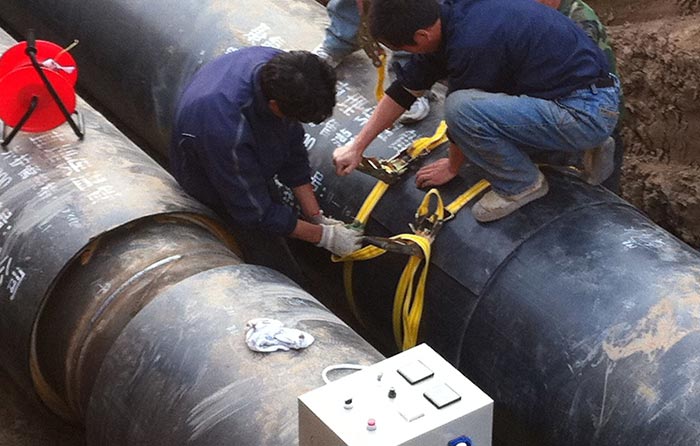

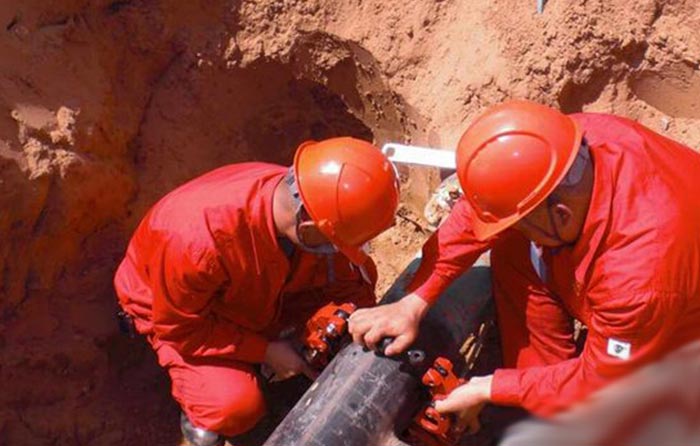

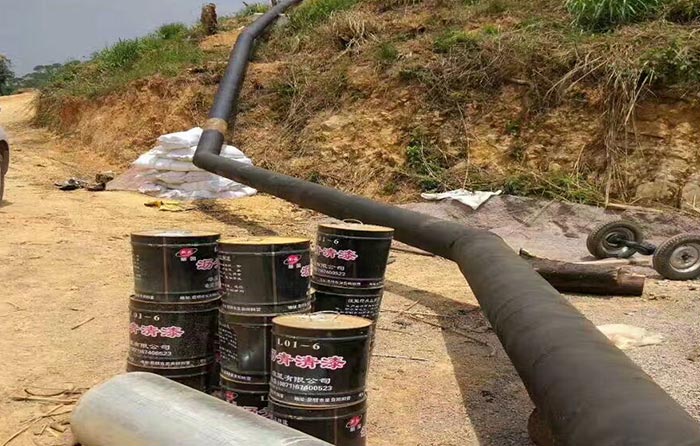

◆ Oil & Gas Pipelines: Resists H₂S, CO₂, and saline corrosion in onshore/offshore transmission systems.
◆ Heat Exchangers: Withstands thermal stress and corrosive fluids in power plants and refineries.
◆ Chemical Fertilizer Pipes: Protects against acidic/alkaline media in agrochemical industries.
◆ Fluid Transport: Ideal for water treatment, petrochemicals, and marine applications.
◆ Infrastructure: Used in structural components requiring lightweight yet durable materials.
KLS Metal Clad Materials prioritizes customer-centric solutions through:
◆ Rapid Delivery: 15–25 days lead time, scalable to bulk orders.
◆ Customization: Tailored cladding ratios, sizes, and material combinations.
◆ Quality Assurance: Strict adherence to GB standards, with optional third-party certifications.
◆ Global Logistics: Sea-worthy packaging and flexible container options (20ft/40ft GP/HC).
◆ Technical Support: End-to-end project guidance, from material selection to post-installation.
